Part 6: Designing a Scalable Cisco Network Topology: Inter-VLAN Routing with Layer 3 Switches Using SVIs

By default, VLANs on a switch are isolated from one another — devices in VLAN 10 can’t communicate with devices in VLAN 20 unless routing is configured. That’s where Inter-VLAN Routing comes in. In enterprise networks, this is best handled by Layer 3 switches using SVIs (Switched Virtual Interfaces).

In this part, you'll configure SVIs on your distribution layer switches (Dist1 and Dist2) to allow communication between different VLANs (Admin, HR, IT, etc.) without using external routers. This setup provides faster routing, reduced latency, and simpler network management.

Objectives

• Understand how Inter-VLAN routing works using SVIs.
• Configure IP addresses for VLAN interfaces (SVIs) on L3 switches.
• Set up default gateways for end devices.
• Test communication between VLANs.

Why SVIs Instead of Router-on-a-Stick?

In your topology, Switch3 and Switch4 are Layer 3 switches, so SVI-based Inter-VLAN routing is the ideal solution.

VLAN IP Address Plan (Example)

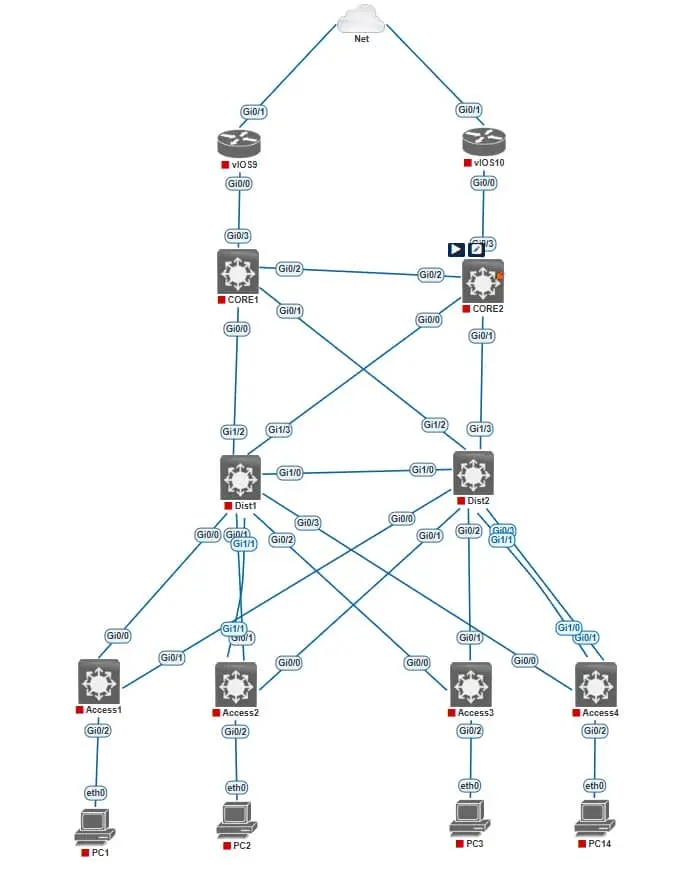

Network Topology

Configuration on Dist1 (L3 Switch)

Dist1(config)#interface vlan 60
Dist1(config-if)#ip address 10.1.60.2 255.255.255.0
Dist1(config-if)#no shutdown
Dist1(config-if)#interface vlan 61
Dist1(config-if)#ip address 10.1.61.2 255.255.255.0
Dist1(config-if)#no shutdown
Dist1(config-if)#interface vlan 62
Dist1(config-if)#ip address 10.1.62.2 255.255.255.0
Dist1(config-if)#no shutdown
Dist1(config-if)#interface vlan 63
Dist1(config-if)#ip address 10.1.63.2 255.255.255.0
Dist1(config-if)#no shutdown

Configuration on Dist2 (L3 Switch)

Dist1(config)#interface vlan 60
Dist1(config-if)#ip address 10.1.60.3 255.255.255.0
Dist1(config-if)#no shutdown
Dist1(config-if)#interface vlan 61
Dist1(config-if)#ip address 10.1.61.3 255.255.255.0
Dist1(config-if)#no shutdown
Dist1(config-if)#interface vlan 62
Dist1(config-if)#ip address 10.1.62.3 255.255.255.0
Dist1(config-if)#no shutdown
Dist1(config-if)#interface vlan 63
Dist1(config-if)#ip address 10.1.63.3 255.255.255.0
Dist1(config-if)#no shutdown

On each PC (PC1–PC4):
Set the default gateway as the .1 IP for its VLAN.
Example for Management PC: 10.1.60.1

Verification Commands

show ip interface brief
show vlan brief
show ip route
