Building a Cisco VXLAN EVPN Fabric with NX-OSv – Part 2: EVPN Control Plane (BGP) & Multicast (PIM Anycast RP)

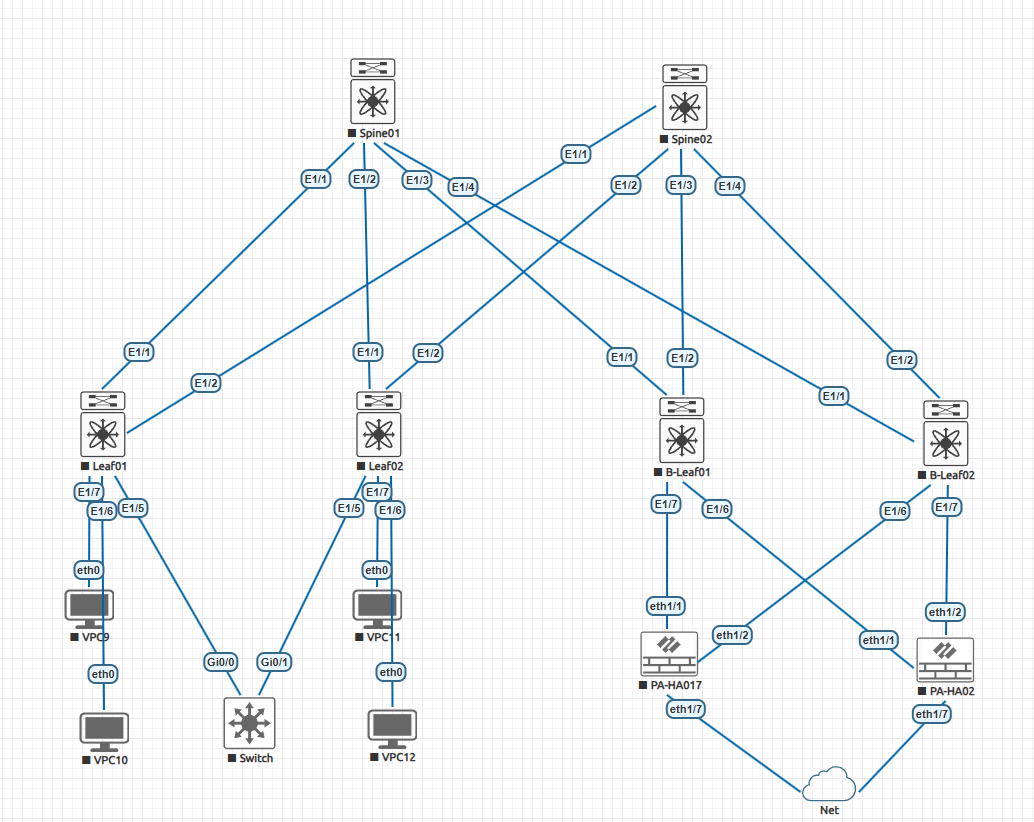

In Part 1, we built a stable underlay using OSPF and Layer 3 interfaces.
Now, we move to the control plane and multicast foundation of the VXLAN fabric.

This part focuses on:

Enabling VXLAN EVPN control plane using BGP
Configuring the Spine as a Route Reflector
Setting up PIM with Anycast RP for VXLAN BUM traffic

A properly designed control plane ensures scalability, while multicast guarantees efficient delivery of BUM traffic across the fabric.

1. Enabling VXLAN EVPN & BGP

Before configuring BGP, we enable the required features on all the switches:

nv overlay evpn
feature bgp

Why This Matters

nv overlay evpn → Activates VXLAN EVPN capabilities
feature bgp → Enables BGP for control-plane signaling

2. BGP EVPN Configuration (Spine as Route Reflector)

The spine acts as a Route Reflector (RR) so leaf switches don’t need full-mesh BGP sessions.

Base BGP Configuration

router bgp 65000
  router-id 1.1.1.1
  log-neighbor-changes

Key Points:

AS 65000 → Common fabric ASN (iBGP)
Router-ID → Matches loopback0
Logging → Helps with troubleshooting neighbor state changes

3. Using BGP Peer Templates

Instead of repeating configuration for every leaf, we use a peer template:

template peer LEAF_FACES
  remote-as 65000
  update-source loopback0
  address-family l2vpn evpn
    route-reflector-client
    send-community extended

Spine01

router bgp 65000
  router-id 1.1.1.1
  log-neighbor-changes

Spine02

router bgp 65000
  router-id 2.2.2.2
  log-neighbor-changes

Same config on both the Spines

router bgp 65000
template peer LEAF_FACES
  remote-as 65000
  update-source loopback0
  address-family l2vpn evpn
    route-reflector-client
    send-community extended

Why Templates?

Cleaner configuration
Easy scalability
Consistency across all leaf peers

Important Concepts

update-source loopback0 → Stable peering using loopbacks
l2vpn evpn → Enables EVPN address family
route-reflector-client → Spine reflects routes between leafs
send-community extended → Required for EVPN route exchange

4. Neighbor Configuration (Leaf Peering)

Apply the template to all Spine switches:

neighbor 11.11.11.11
  inherit peer LEAF_FACES

neighbor 22.22.22.22
  inherit peer LEAF_FACES

neighbor 33.33.33.33
  inherit peer LEAF_FACES

neighbor 44.44.44.44
  inherit peer LEAF_FACES

Leafs configs

Leaf01

router bgp 65000
 router-id 11.11.11.11
 log-neighbor-changes

Leaf02

router bgp 65000
 router-id 22.22.22.22
 log-neighbor-changes

B-Leaf01

router bgp 65000
 router-id 33.33.33.33
 log-neighbor-changes

B-Leaf02

router bgp 65000
 router-id 44.44.44.44
 log-neighbor-changes

Configure on all the Leafs

router bgp 65000
 log-neighbor-changes
 template peer SPINE_FACES
   remote-as 65000
   update-source loopback0
   address-family l2vpn evpn
     send-community extended

 # Applying the template
 neighbor 1.1.1.1
 inherit peer SPINE_FACES
 neighbor 2.2.2.2
 inherit peer SPINE_FACES

What’s Happening Here?

Each neighbor represents a leaf switch loopback IP
Spine forms iBGP EVPN sessions
Spine reflects routes → leaf-to-leaf communication becomes possible

5. Why Route Reflector Design?

Without a Route Reflector:

Every leaf must peer with every other leaf (full mesh)

With a Spine RR:

Leafs only peer with spines
Fabric becomes scalable and manageable

6. Multicast Requirement in VXLAN

VXLAN uses multicast to handle BUM traffic:

Broadcast
Unknown unicast
Multicast

To support this, we configure PIM Sparse Mode.

7. Enable PIM on the Spine and Leafs

feature pim

8. Anycast RP Configuration

To avoid a single point of failure, we use Anycast RP across spines.

RP Loopback Interface on all the Spine switches

interface Loopback1
  description ANYCAST_RP_IP
  ip address 10.10.10.10/32
  ip router ospf 1 area 0
  ip pim sparse-mode

Why This is Important

Shared RP IP → 10.10.10.10
Advertised via OSPF → reachable from all devices
Enables multicast control-plane stability

Configure Anycast RP on all the spines

ip pim anycast-rp 10.10.10.10 1.1.1.1
ip pim anycast-rp 10.10.10.10 2.2.2.2

Explanation

10.10.10.10 → Shared RP address
1.1.1.1 / 2.2.2.2 → Spine loopbacks acting as RP nodes

This provides:

Redundancy
Load balancing
Fast failover

Advertise RP to the Fabric on all the switches

ip pim rp-address 10.10.10.10 group-list 224.0.0.0/4

All devices now know where to send multicast joins.

9. Enable PIM on Interfaces all the switches

interface Loopback0
  ip pim sparse-mode

interface Ethernet1/1-4
  ip pim sparse-mode

Why?

Ensures multicast routing works across:
- Spine ↔ Leaf links
- Loopback interfaces

10. Verification Commands

Use these to validate your setup:

show bgp l2vpn evpn summary
show bgp l2vpn evpn
show ip pim rp
show ip pim neighbor

Expected Results:

BGP neighbors → Established
EVPN routes → Being exchanged
RP → Reachable from all nodes
PIM neighbors → Formed correctly

11. Key Takeaways

Component	Purpose
BGP EVPN	VXLAN control plane
Route Reflector	Scalable BGP design
PIM	Multicast transport
Anycast RP	Redundancy for multicast

Conclusion

At this stage:

The underlay (OSPF) is operational
The control plane (BGP EVPN) is established
The multicast foundation (PIM + Anycast RP) is ready
Your fabric is now prepared to carry VXLAN traffic.
